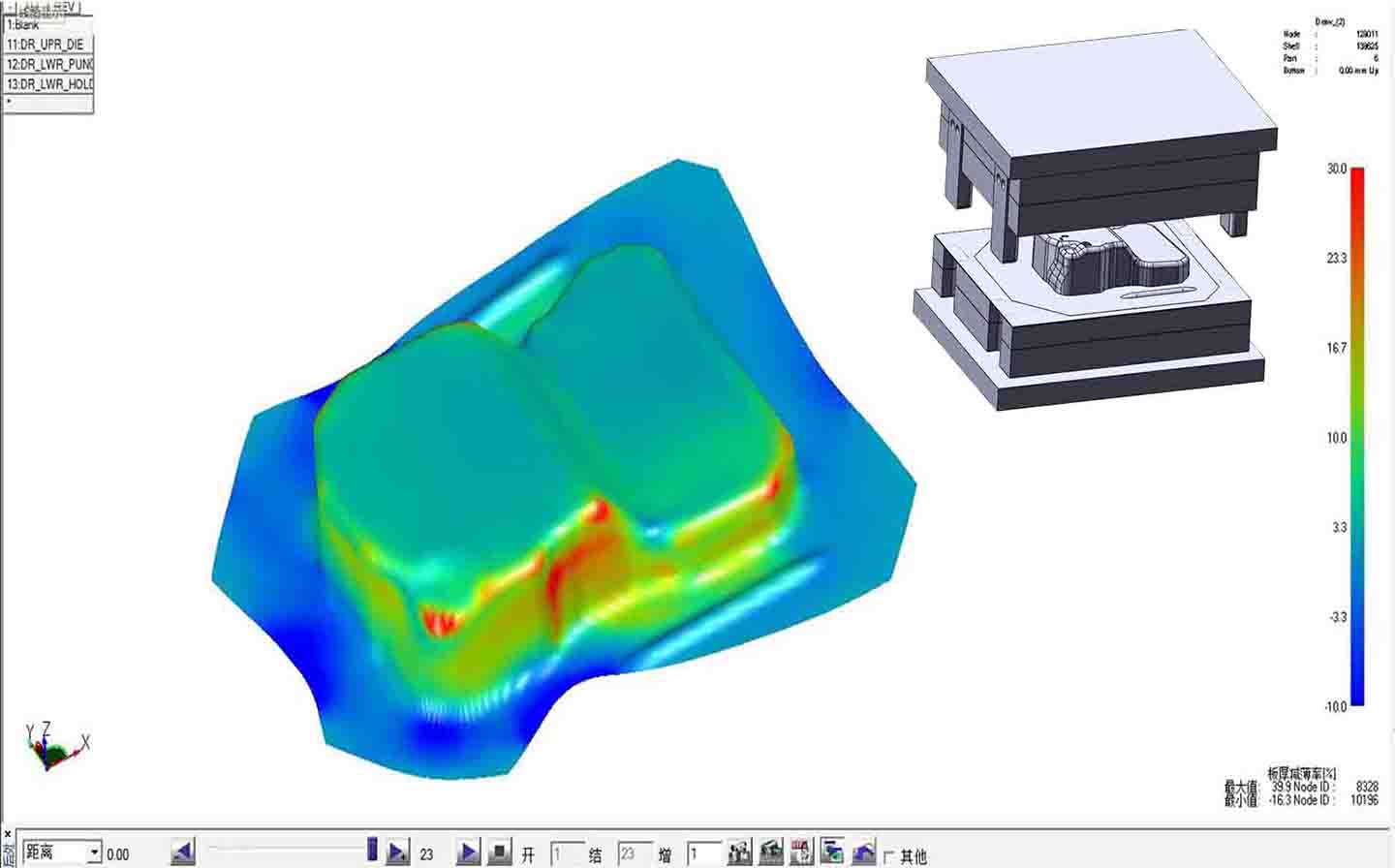

The simulation of the deep drawing was the first thing we were doing when we get the pan from the customer.
We will built the mold according to the simulation result

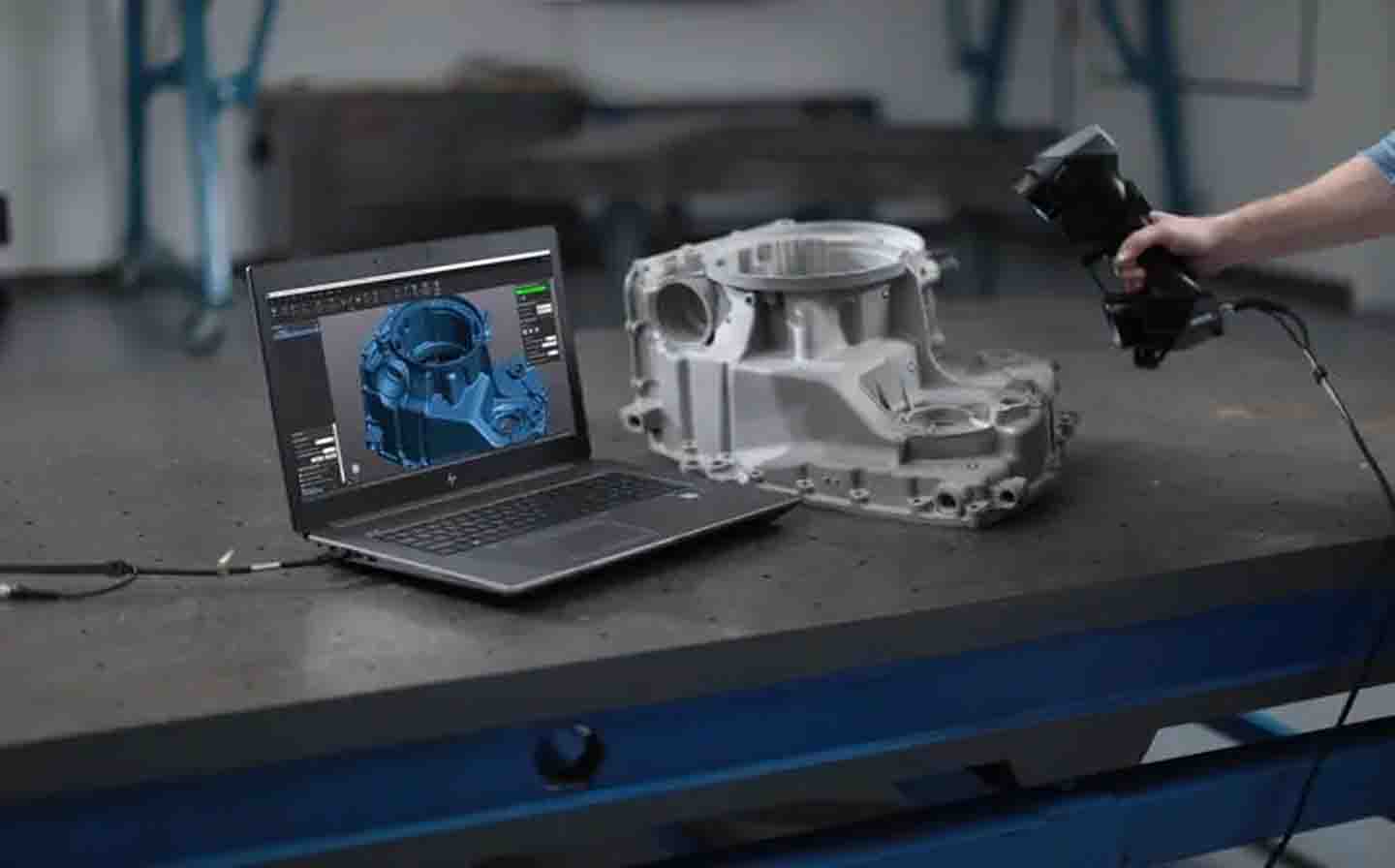

3D scanning and reverse engineer
We will use the creamform handy scanner equipment to create the 3D for the engine oil pan sump ,transmission oil pan oil sump and other automotive case

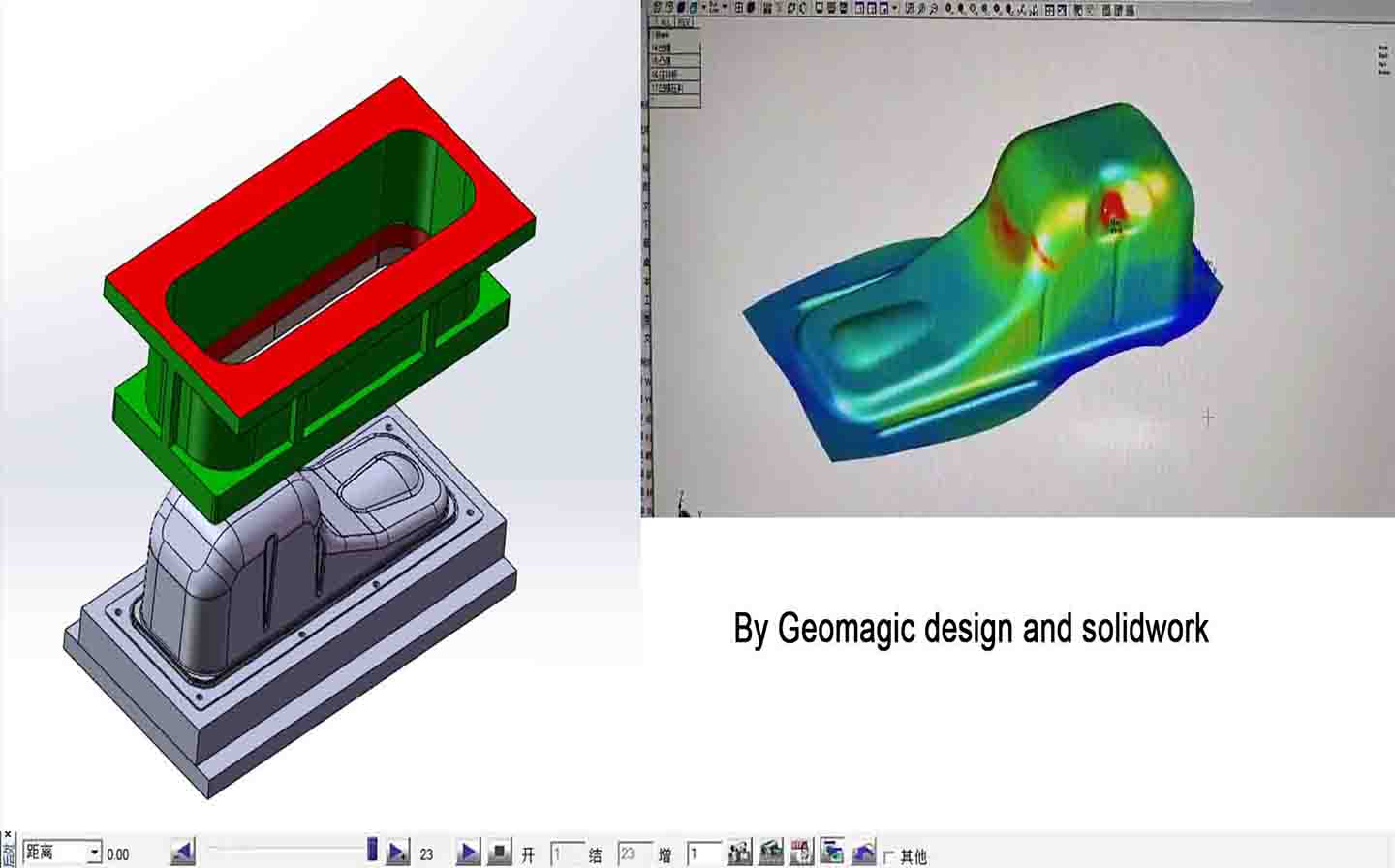

Engine oil pan mold design
The mold of the engine oil pan design with the software as soldwork ,ug ,catia,auto cad......

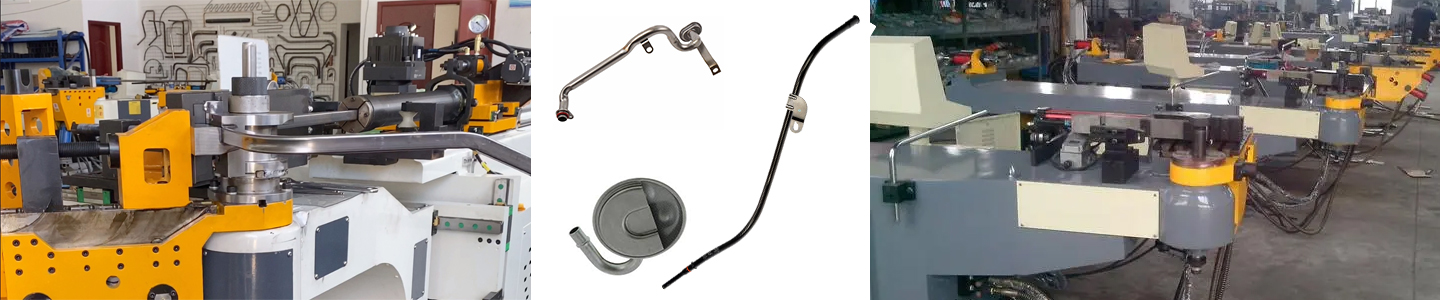

We use those software to design the mold of the oil pan ,oil sump ,engine oil pickup tube ,engine dipstick
